Spiral Crusher

Spiral shredder is also called spiral crusher. It is a device that uses a spiral structure to crush materials. Through the action of spiral propulsion and cutting, the material is crushed into the required particle size. The equipment has the advantages of simple structure, convenient maintenance, small footprint, good crushing effect, and easy installation and use. It is widely used in resource recycling industry and other fields.

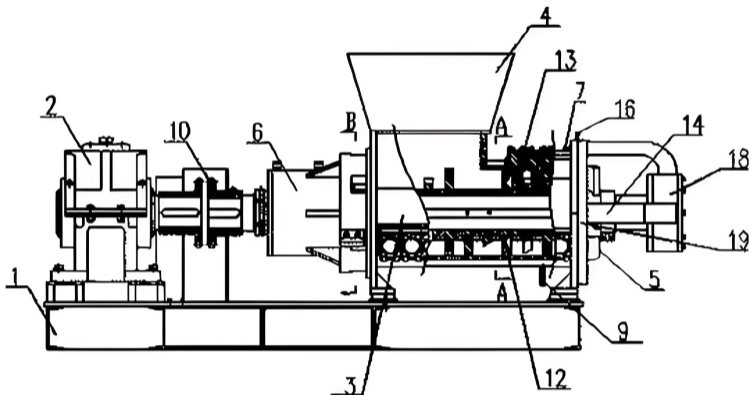

1. Rack ；2. Hard gear reducer； 3. Host； 4. Crushing tool, feed port； 5. Discharge port； 6. Rear end bearing seat； 7. Tighten bolts 9. Water inlet； 10. Coupling；12. Go under the knife； 13. Motor； 14. Rotation axis； 16. Adjust the handle；18. Front bearing seat； 19. Sieve plate

Application

The Spiral Shredder for Soft Materials is a highly efficient cutting solution designed specifically for flexible solid waste. With its low-speed, high-torque spiral blade design, this machine excels at shredding fibrous, fabric-based, tough, and easily entangled materials. lt is ideal for processing a wide variety of soft waste, including used clothing, woven bulk bags, agricultural film, PP straps, pet pads, and various flexible plastic packaging materials. Whether for pre-treatment in recycling processes or volume reduction to cut transportation costs,this shredder delivers reliable and efficient performance-making it an excellent choice for applications such as textile recycling, plastic packaging recovery, and agricultural film disposal.
